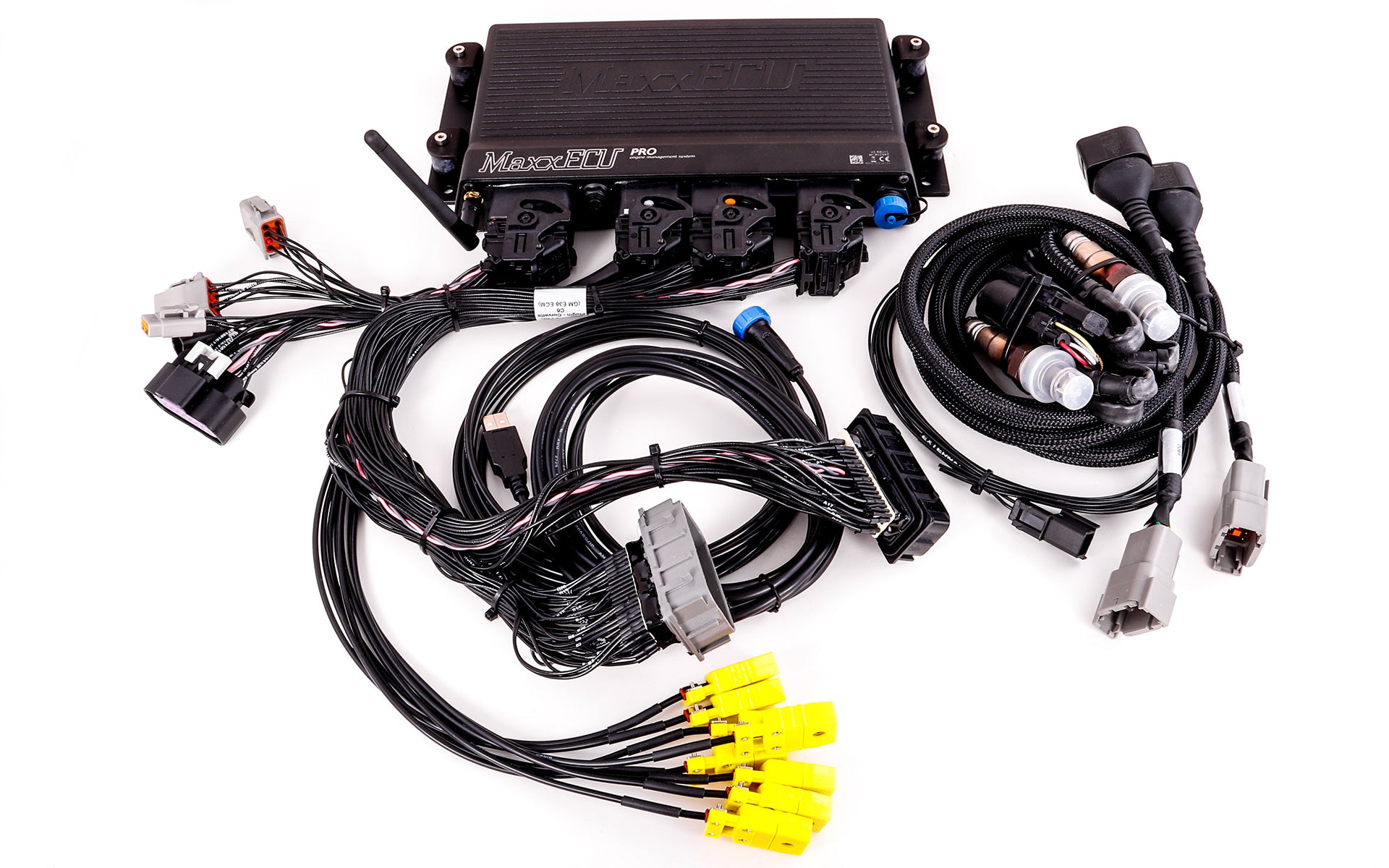

GM Corvette C6 (E38 ECM) MaxxECU PRO Plugin EXTRA
Regular price
$3,241.64
Couldn't load pickup availability
Fast and easy installation
In less than three hours you get access to the powerful GM LS engine, with all the vehicle electronics including instrument cluster and meters
True plugin solution
TRUE plugin solution for the Corvette C6, no need to wire in, just replace the stock ECU and get instant access to the LS engine and the advanced vehicle features available
6.0L, 6.2L, 7.0L (V8)
GM LS engine, easy to gain a lot of horsepower, old but proven tech. MaxxECU unleashes the full potential of the GM LS engine
Selected MaxxECU advantages
- Built-in MAP-sensor (up to 43 psi / 3bar of boost pressure)
- MDash/RealDash Android app connectivity
- Superfast USB communication
- High or low impedance injector support
- No changes in original electronics
- Direct access to up to 8 EGT-sensors
Selected vehicle features

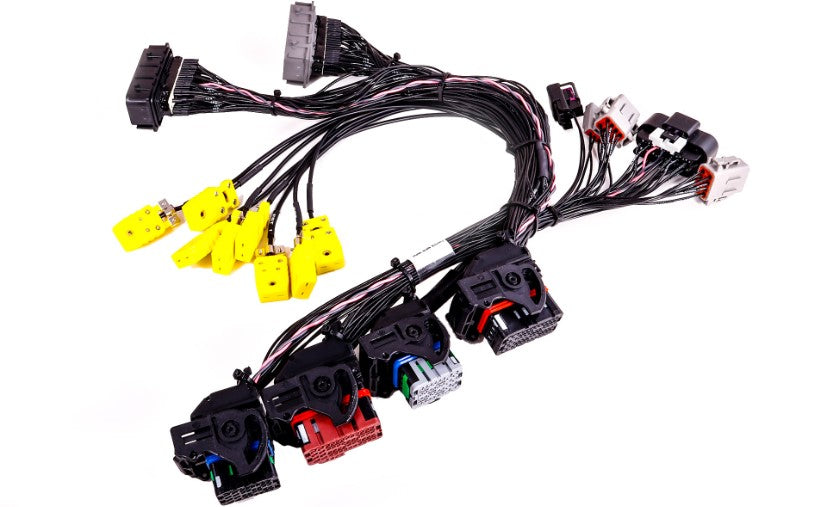

- Uses stock harness, easy installation
- The air mass meter is removed
- Controls idle valve, AC, tachometer and other instruments
- Controls E-Throttle, EVAP and other valves
- Full CAN bus control of the stock dash

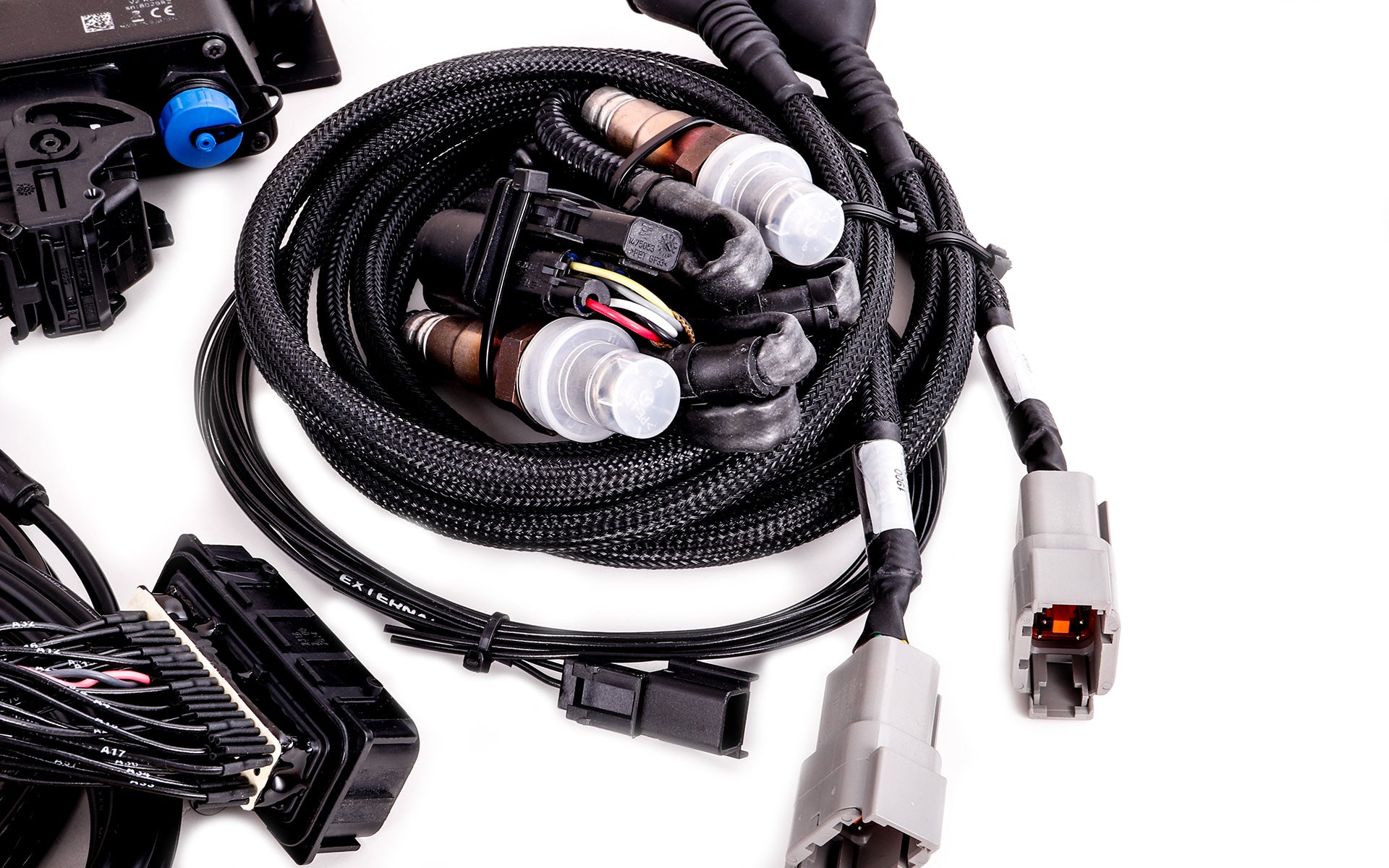

- Stock lambda sensor(s) is replaced with the included wideband sensor
- OBD II functionality as option
Selected MaxxECU functions
- Boost control
- Traction control
- Anti-lag (using E-Throttle)
- Launch control
- Advanced dragracing functions
- Shift-cut
- Lambda control
- Boost level switching
Compatibility
- Compatible with MaxxECU PRO
- Some features not available depending on used ECU
MTune tuning features
- 2D and 3D
- Shortcuts for most operations
- Interpolation
- Local autotune
- Live-logger
- Superfast USB connection
- Live tuning - No need to burn changes - instant save
- Table smoothing
MaxxECU trigger support
See supported trigger system in online tech pages.MaxxECU engine protections
- EGT fuel correction
- Lean power cut
- EGT power cut
- Rev limit
- Advanced warning and protection system
- Lambda fuel correction
MaxxECU auto transmission support
MaxxECU functionality
- Launch control (up to three stages)
- Rolling launch
- Anti-lag using solenoid or E-Throttle
- Traction control
- Power management
- Shift-cut
- Overrun fuel cut
- Lambda control (closed loop)
- Nitrous control
- AC control
- Boost control (closed/open loop), extra compensation tables.
- Boost level switching
- E-Throttle support
- VANOS/VVTi support
- Logging: Internal up to 1000Hz, PC logging 20Hz
- Built-in error diagnostics and handling
- Idle control using E-Throttle, idle solenoid, stepper motor or ignition timing
- Closed loop anti-stall
- Ignition timing lock for easy synchronization with timing light
- Flex fuel
MaxxECU advanced features
- Speed limiters
- Individual fuel correction per cylinder
- Injector staging
- Virtual fuel tank/fuel consumption
- Filters on TPS, RPM and MAP signals
- Trailing ignition
- Virtual inputs/internal outputs to activate internal functions
- Use of TYPE-K sensor to report IAT up to 350 degree C/660 F
- Wastegate control with CO2 for predictable boost
- Extra user table activation based on user defined settings
- After launch power limit, function to control traction after launch
- CAN inputs (advanced) - Receive CAN data from external electronics and use in MaxxECU, such as OEM vehicle buttons.
- Automatic starting and stopping of internal log function based on user conditions (speed, load, error code etc.)
- Timers and distance counters
- CAN for OEM protocols, OBDII, and CAN modules
- Clutch slip control with user defined tables (as an example)
- Measure injector resistance directly from software
- Built-in trigger oscilloscope
- Built-in trigger logger
- Flexible load/speed axis selection
- Flexible user output functions
- Flexible user PWM/FREQ output functions
- Speedometer output function
- Tachometer output selectable 5/12V, supports external flyback coil
- Sequential gearbox control
