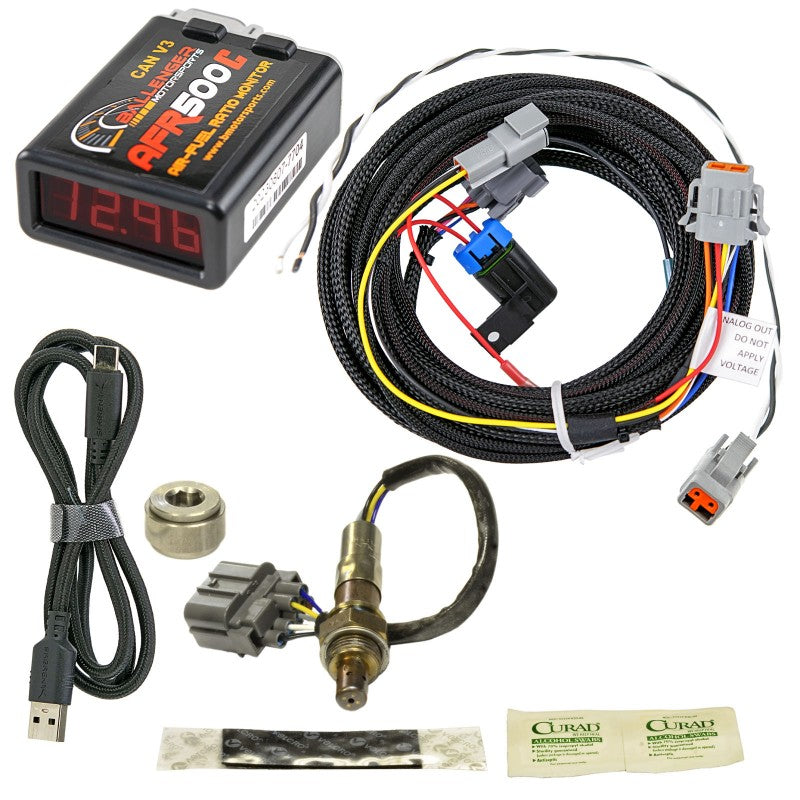

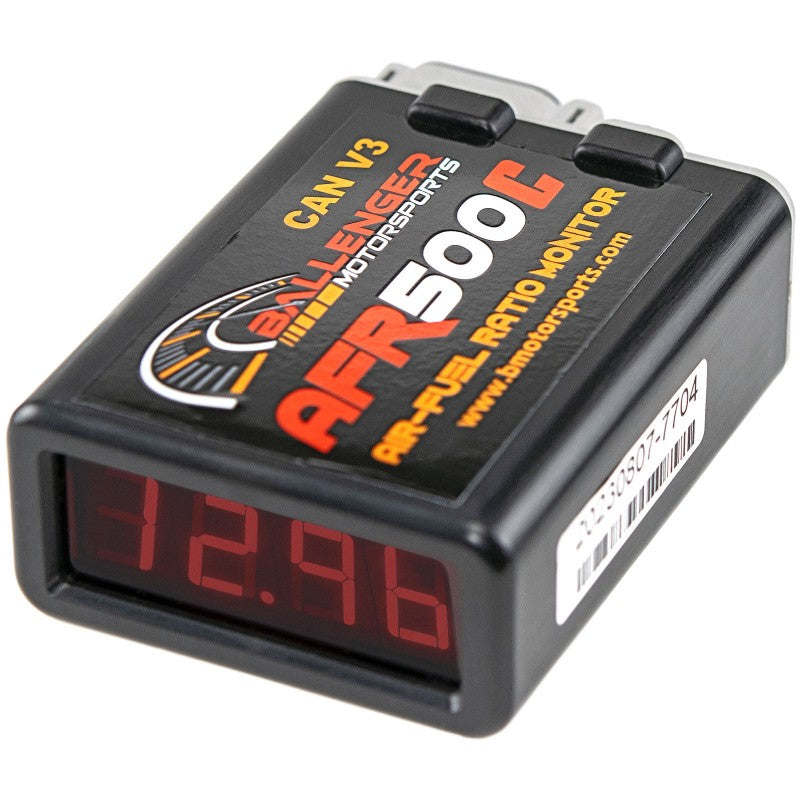

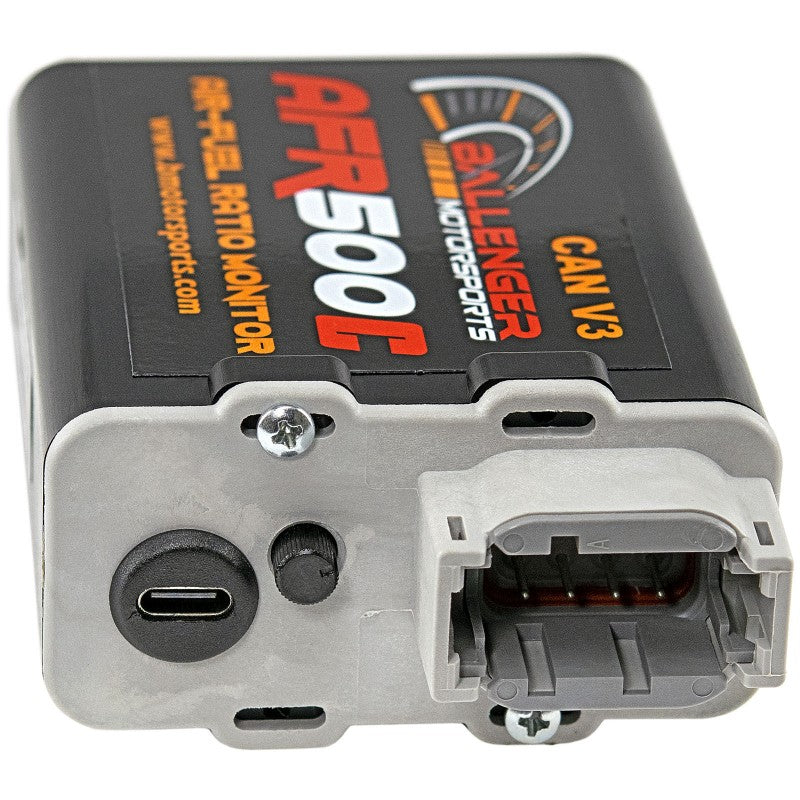

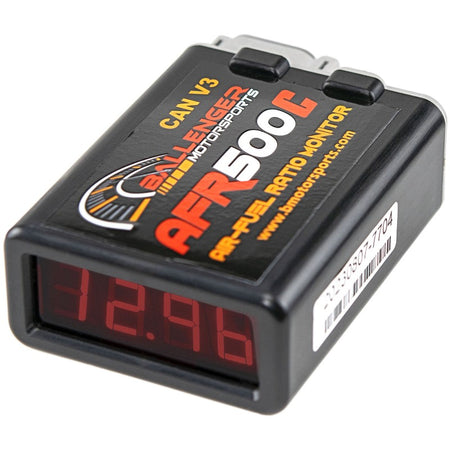

Ballenger Motorsports AFR500v3CAN - Air Fuel Ratio Monitor Kit

SKU: BMS-AFR500CAN-SNSR-00993
Regular price $614.98

Kaizenspeed Spec:

NTK production grade sensor

Gasoline AFR display

HP Tuners CAN connection via OBDII port



The AFR500v3CAN takes the AFR500 industry benchmark performance and adds the convenience of plug and play digital CAN Bus messaging. The AFR500CAN offers configurability for CAN enabled system with specific presets for HP Tuners, EFILive, MoTec, AEM, Haltech, & more. PC software is included for complete programmability of CAN or OBDII message structure. No adapters or extra hardware are required for PC programming.


Summary of Changes for the AFR500v3 and AFR500v3CAN:

  • A digitally derived output with a higher resolution digital/analog converter
  • FOUR times the measurement resolution (4096 increments compared to the previous 1024)
  • The ASIC chips, one of the most common points of failure from electrostatic damage, will be completely replaced with a custom board providing better protection and upgrade capabilities.
  • The ability to display from 0.0 to 6.0 in lambda setting for better flexibility with alternate fuels such as diesel.
  • Ability to upgrade firmware for future sensor types
  • All harnesses, control units, accessories, etc are backwards and forwards compatible
  • Options are selectable at any time via internal jumpers
  • NTK Calibration grade sensor highly recommended for low AFR methanol applications. NTK Production Grade is the least expensive sensor we recommend for methanol applications.



Summary of Changes specific to the AFR500v3CAN:

  • Programmable CAN termination resistor
  • Sensor Averaging Filter setting
  • O2% output
  • Fault condition diagnostics
  • IP, pump cell current output
  • Sensor Temperature output
  • Heater duty cycle output
  • Battery voltage output



Digital Communication options

    • CAN 2.0
    • OBDII (CAN)
    • USB to PC
    • Serial over USB (HP Tuners)
    • NEMA 2000 (coming soon)
    • J1939 (coming soon)

Validated Compatibility

    • HP Tuners CAN OBDII
    • HP Tuners Serial Lambda & Serial AFR over USB
    • EFI Live CAN OBDII
    • MoTeC
    • AEM / AEMnet
    • Haltech
    • MS3 / Megasquirt 3
