Preloaded 4-Button Keypad Program

SKU: KAI-5202
$0.00

HOW TO UPLOAD A PROGRAM TO A CONTROL MODULE

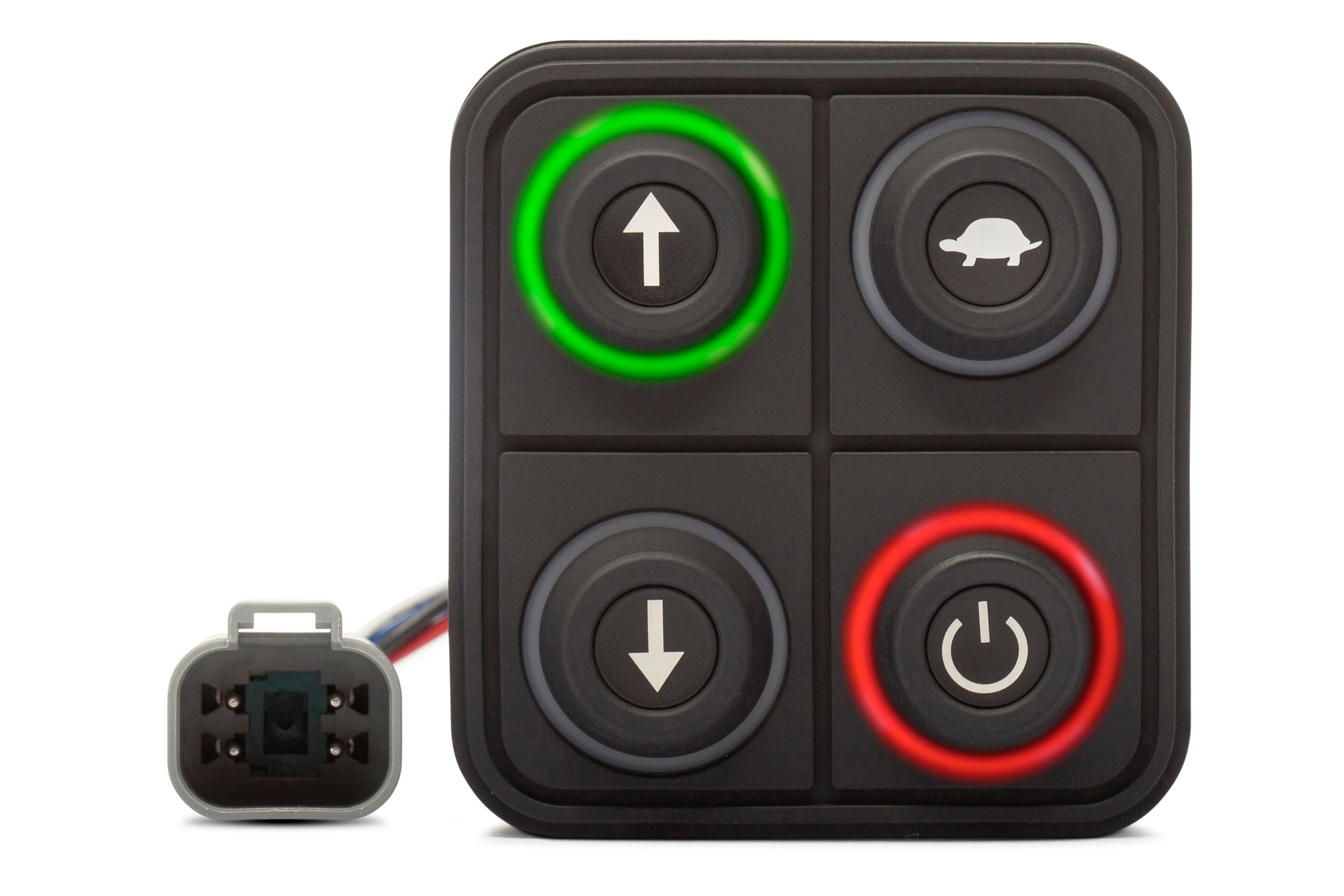

Preloaded Control Module Program for use with our 4-Position Keypad:

  • Buttons 1-3 control Outputs 1-3 (Latching On/ Off)
    • Button 1 controls Output 1
    • Button 2 controls Output 2
    • Button 3 controls Output 3
  • Button 4 changes functionality of Buttons 1, 2, 3.
  • Once you press Button 4, it will change to orange and the functionality of Buttons 1-3 change from latching into duty cycle control mode where each press increases duty cycle by 33%.
  • Demonstration in the video below:
